Architecture of Humayun Tomb
|
The Turkish and Mughal rule in the Indian subcontinent, also introduced Central Asian and Persian styles of Islamic architecture in the region, and by the late 12th century early monuments in this style were appearing in and around Delhi, the capital of Delhi Sultanate. Starting with the Turkic Slave dynasty which built the Qutb Minar (1192 AD) and its adjacent Quwwat-ul-Islam mosque (1193 CE). North India was successive ruled foreign dynasties in the coming centuries giving rise to the Indo-Islamic architecture. While the prevailing style of architecture was trabeate, employing pillars, beams, and lintels, this brought in the arcuate style of construction, with its arches and beams, which flourished under Mughal patronage and by incorporating elements of Indian architecture, especially architecture including decorative corbel brackets, balconies, pendentive decorations and indeed kiosks or chhatris, to developed a distinct, Mughal architecture style, which was to become a lasting legacy of the nearly four hundred years of the Mughal rule. The combination of red sandstone and white marble was previously seen in Delhi Sultanate period tombs and mosques, most distinctively in the highly decorative Alai Darwaza in the Qutub complex, Mehrauli, built in 1311 AD, under the Khilji dynasty.
The high rubble built enclosure is entered through two lofty double-storied gateways on the west and south, 16 meters high with rooms on either side of the passage and small courtyards on the upper floors. Six-sided stars that adorn the main gateway on the west are also seen on the iwan of the main tomb structure though it has been used as the ornamental cosmic symbol. The mosque usually present alongside royal tombs, like the Taj, is conspicuously missing from the enclosure, which has only one other structure, the tomb of Emperor's favorite barber, now commonly known asNai ka Gumbad (Dome-of-barber). The tomb built of rubble masonry and red sandstone, uses white marble as a cladding material and also for the flooring, lattice screens (jaalis), door frames, eaves (chhajja) and for the main dome. It stands on a vaulted terrace eight-meter high and spread over 12,000m². It is essentially square in design though chamfered on the edges to appear octagonal, to prepare ground for the design of the interior structure. The plinth made with rubble core has fifty-six cells all around, and houses over 100 gravestones. Plus, the entire base structure is on a raised platform, a few steps high.
Inspired by Persian architecture; the tomb reaches a height of 47 meters (154 ft.) and is 91 meters (299 ft.) wide, and was the first Indian building to use the Persian double dome on a high neck drum, and measures 42.5 meters (139 ft.), and is topped by 6 meters (20 ft.) high brass finial ending in a crescent, common inTimurid tombs. The double or 'double-layered' dome, has its outer layer which supports the white marble exterior, while the inner part gives shape to the cavernous interior volume. As a contrast to the pure white exterior dome, rest of the building is made up of red sandstone, with white and black marble and yellow sandstone detailing, to relieve the monotony.

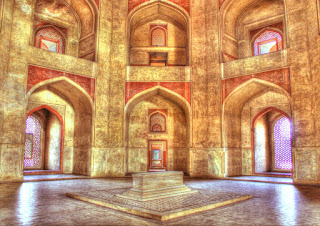

Humayun's cenotaph stands alone in the main chamber; the real grave lies in the basement below
The symmetrical and simple designed on the exterior is in sharp contrast with the complex interior floor plan, of inner chambers, which is a square 'nine-fold plan', where eight two-storied vaulted chambers radiate from the central, double-height domed chamber. It can be entered through an imposing entrance iwan (high arc) on the south, which is slightly recessed, while others sides are covered with intricate jaalis, stone lattice work. Underneath this white dome in a domed chamber (hujra), lies the central octagonal sepulcher, the burial chamber containing a single cenotaph, that of the second Mughal Emperor, Humayun aligned on the north-south axis, as per Islamic tradition, wherein the head is placed to the north, while the face is turned sideways towards Mecca. The real burial chamber of the Emperor however lies further away in an underground chamber, exactly beneath the upper cenotaph, accessible through a separate passage outside the main structure, which remains mostly closed to visiting public. This burial technique along with pietra dura, a marble and even stone inlay ornamentation in numerous geometrical and arabesque patterns, seen all around the facade is an important legacy of the Indo-Islamic architecture, and flourished in many later mausoleum of the Mughal Empire, like the Taj Mahal, where again we find twin cenotaphs and exquisite 'pietra dura' craftsmanship.
The main chamber also carries the symbolic element, a mihrab design over the central marble lattice or jaali, facing Mecca in the West, here instead of the traditional Surah 24, An-Noor of Quran which is inscribed on the mihrabs, this one is just an outline allowing light to enter directly into the chamber, from Qibla or the direction of Mecca, thus elevating the status of the Emperor, above his rivals and closer to divinity.
This chamber with high ceiling is then encompassed by four main octagonal chambers on two floors, set at the diagonals with arched lobbies leading to them also connecting them, plus there are four auxiliary chambers in between suggesting that the tomb was built as a dynastic mausoleum. Collectively the concept of eight side chambers not only offers passage for circumambulation of the main cenotaph, a practice common in Sufism and also visible in many Mughal imperial mausoleums, it also the reflect the concept of Paradise in Islamic cosmology. Each of the main chambers has in turn eight more, smaller chambers radiating from them, and thus the symmetrical ground plan reveals itself to contain 124 vaulted chambers in all. Many smaller chambers too, contain cenotaphs of other members of the Mughal royal family and nobility, all within main walls of the tomb. Prominent among them cenotaphs of Hamida Begum herself, alongside Dara Shikoh. In all there are over 100 graves within the entire complex, including many on the first level terrace, earning it the name "Dormitory of the Mughals"; since the graves are not inscribed their identification remains uncertain.
The building was first to use its unique combination of red sandstone and white marble, and includes several elements of Indian architectural, like the small canopies, or chhatris surrounding the central dome, popular in Rajasthani architecture and which were originally covered with blue tiles.
Char Bagh garden
|

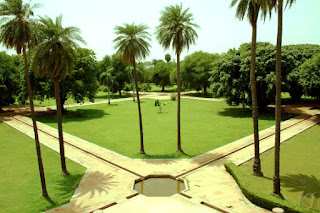

Char Bagh of Humayun Tomb |
While the main tomb took over eight years to build, it was also placed in center of a 30-acre (120,000 m2) Char Bagh Garden (Four Gardens), a Persian-style garden with quadrilateral layout and was the first of its kind in the South Asia region in such a scale. The highly geometrical and enclosed Paradise garden is divided into four squares by paved walkways (khiyabans) and two bisecting central water channels, reflecting the four rivers that flow in jannat, the Islamic concept of paradise. Each of the four squares is further divided into smaller squares with pathways, creating into 36 squares in all, and a design typical of later Mughal gardens. The central water channels appear to be disappearing beneath the tomb structure and reappearing on the other side in a straight line, suggesting the Quranic verse, which talks of rivers flowing beneath the 'Garden of Paradise'.
The entire tomb and the garden is enclosed within high rubble walls on three sides, the fourth side was meant to be the river Yamuna, which has since shifted course away from the structure. The central walkways terminate at two gates: a main one in the southern wall, and a smaller one in the western wall. It has two double-storey entrances, the West gate which used now, while the South gate, which was used during Mughal era, now remains closed. Aligned at the center on the eastern wall lies a baradari, literally a pavilion with twelve doors, which is a building or room with twelve doors designed to allow the free draught of air through it, finally on the northern wall lies a hammam, a bath chamber.
